Technical Datasheet
- Excellent transparency
- Excellent humidity and moisture resistance
- Fast to build and easy to fifinish
- Accurate and dimensionally stable

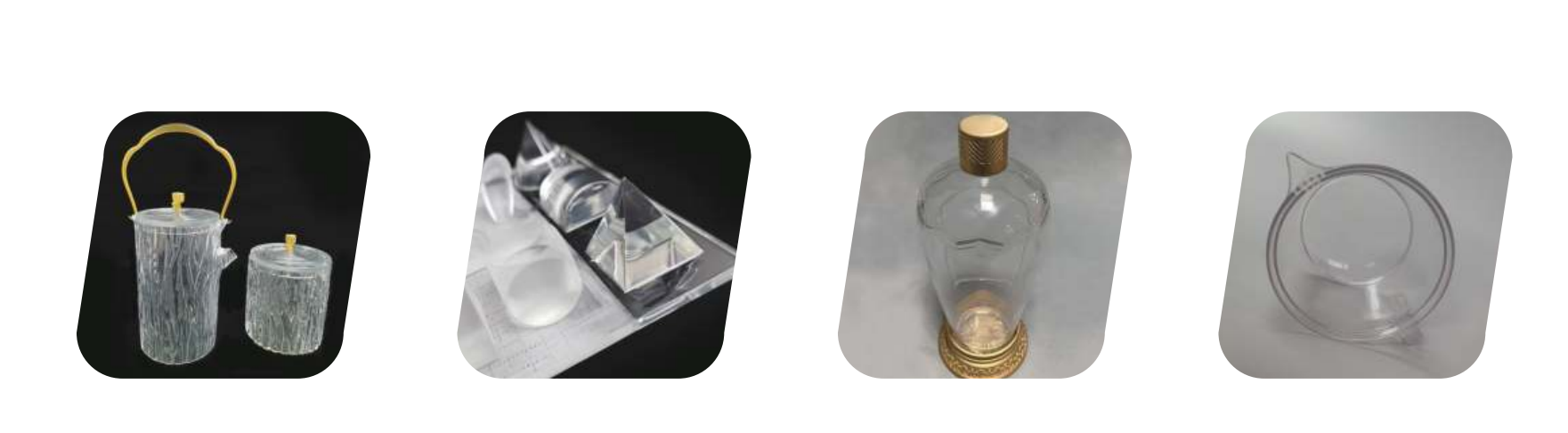

Ideal Applications
- Automotive lenses
- Bottles and tubes
- Tough functional prototypes
- Transparent display models
- Fluid flflow analysis
Technical Data-sheet
|
Liquid Properties |
Optical Properties |
||
| Appearance | Clear | Dp | 0.135-0.155 mm |
| Viscosity | 325 -425cps @ 28 ℃ | Ec | 9-12 mJ/cm2 |
| Density | 1.11-1.14g/cm3 @ 25 ℃ | Building layer thickness | 0.1-0.15mm |
| Mechanical Properties | UV Postcure | |
| MEASUREMENT | TEST METHOD | VALUE |
| Hardness, Shore D | ASTM D 2240 | 72-78 |
| Flexural modulus, Mpa | ASTM D 790 | 2,680-2,775 |
| Flexural strength , Mpa | ASTM D 790 | 65- 75 |
| Tensile modulus , MPa | ASTM D 638 | 2,170-2,385 |
| Tensile strength , MPa | ASTM D 638 | 25-30 |
| Elongation at break | ASTM D 638 | 12 -20% |
| Impact strength, notched lzod, J/m | ASTM D 256 | 58 - 70 |
| Heat deflection temperature, ℃ | ASTM D 648 @66PSI | 50-60 |
| Glass transition, Tg | DMA，E”peak | 55-70 |
| Density , g/cm3 | 1.14-1.16 | |
Recommended temperature for processing and storage of the above resin should be 18℃-25℃
The above data are based on our current knowledge and experience, the values of which may vary and depend on individual machine processing and post-curing practices. The safety data given in above is for information purposes only and
does not constitute a legally binding MSDS.
